Indoor Reach Truck Forklift 1.5 Ton AC Control High Grade Configuration

Brand Name : JAC

Model Number : CQD15

Certification : CE,ISO9001,ISO14001,OHSAS18001

Place of Origin : CHINA

MOQ : 1UNIT

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000UNITS/MONTH

Delivery Time : 30 days

Loading Capacity : 1500KG

Warranty : One Year

Power : Electricity

Color : Red or Yellow

Lift height : 3m-8m

Controller : Curtis or PG

Contact Now

Indoor Forklift , Reach Lift With Load Capacity 1.5 Ton , Lift Height From 3m-8m , High-grade Configuration

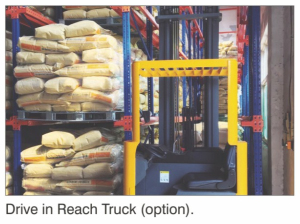

CQD15(EPS)Reach Trucks is innovation type based on CQD15M, which with heavy duty chassis, extra large compartment and unequalled visibility. Which can excels bigger load capacity a high reach elevations, compact cabin design can be used in drive in racking, the operator can work more effectively.

Advantages:
• AC control system.
• Powering steering system(EPS).
• Muti-function display can show: Brake status, Driving direction, Hour meter, Driving speed, Fault code, etc.
• Manual multi valve.
• Adjustable speed for forks lifting/lowering mast forward/backward and side shift right/left.
• German ZF brand gear box.
• Adjustable steering wheel.
• With traveling speed limited device when forks at high level.
• Electronic height limited device.

Parameters:

Model		CQD15

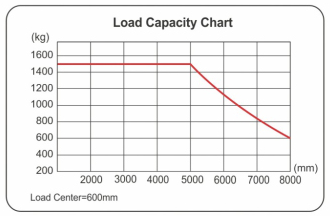

Capacity /rated load	Q(kg)	1500
Max. lift height	h3(mm)	3000/5000/6200/7400/8000

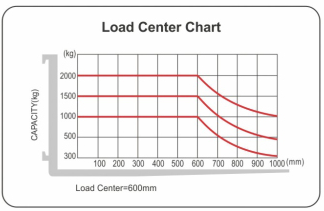

Load centre distance	c(mm)	600
Drive wheel	mm	Φ310×125
Fork wheel	mm	Φ285×110
Wheels, number front rear(x=driven wheels)		1x/2
Tilt of mast/fork carriage forkward/backward	α,β(Grad)	2,2(forks)

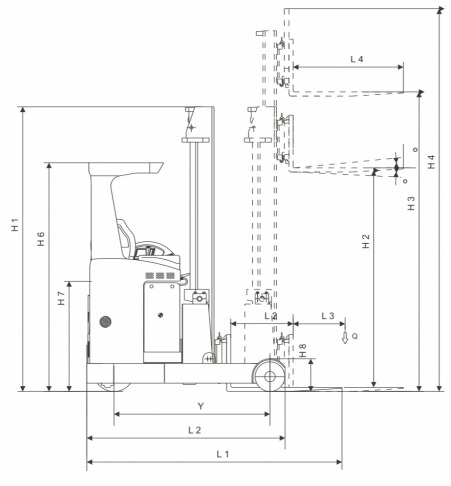

Height,mast lowered	h1(mm)	2086/2240/2740/3190/3390
Free lift	h2(mm)	0/1700/2100/2500/2700
Height,mast extended	h4(mm)	3800/5800/7000/8200/8800
Height of overhead guard(cabin)	h6(mm)	2140
Seat height/stand height	h7(mm)	970
Height of crura	h8(mm)	315
Overall length	l1(mm)	2370
Length(barring fork)	l2(mm)	1880

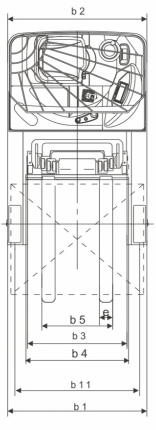

Overall width	b1(mm)	1200
Fork dimensions	s/e/l(mm)	40/120/1070
Reach distance	l4(mm)	600
Aisle width for pallets 1000×1200 crossways	Ast(mm)	2800
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2890
Turning radius	Wa(mm)	1780
Travel speed,laden/unladen	Km/h	9/9.3
Lift speed,laden/unladen	m/s	0.24/0.3
Lowered speed,laden/unladen	m/s	0.5/0.4
Battery voltage,nominal capacity K5	V/Ah	48/400
Battery weight	kg	720
Battery dimensions l/w/h	mm	1220x344x650
Service weight	kg	2900/3000/3100/3200/3300
